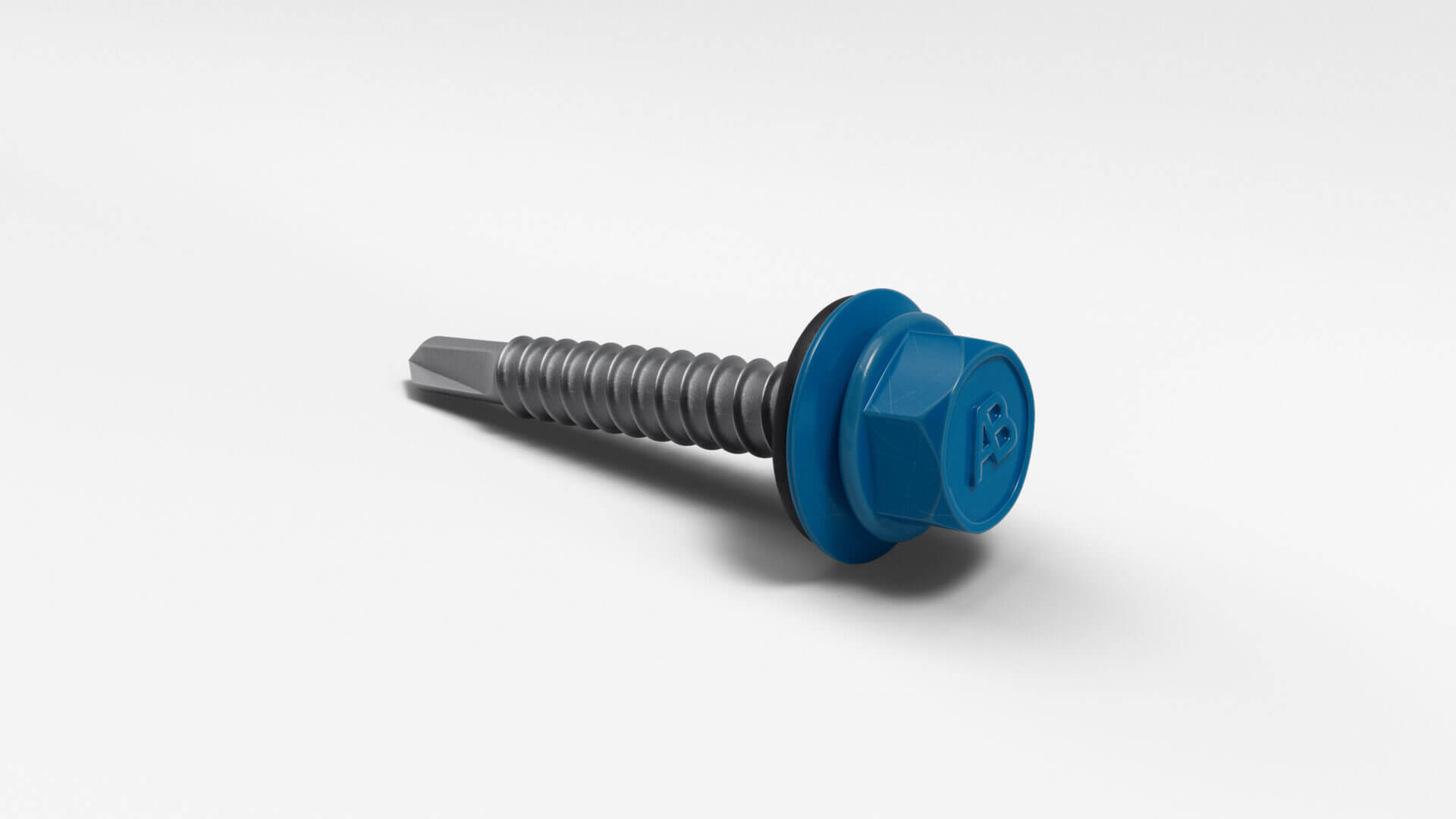

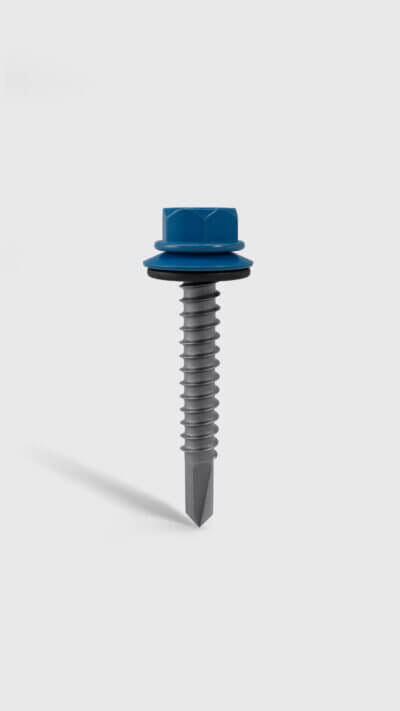

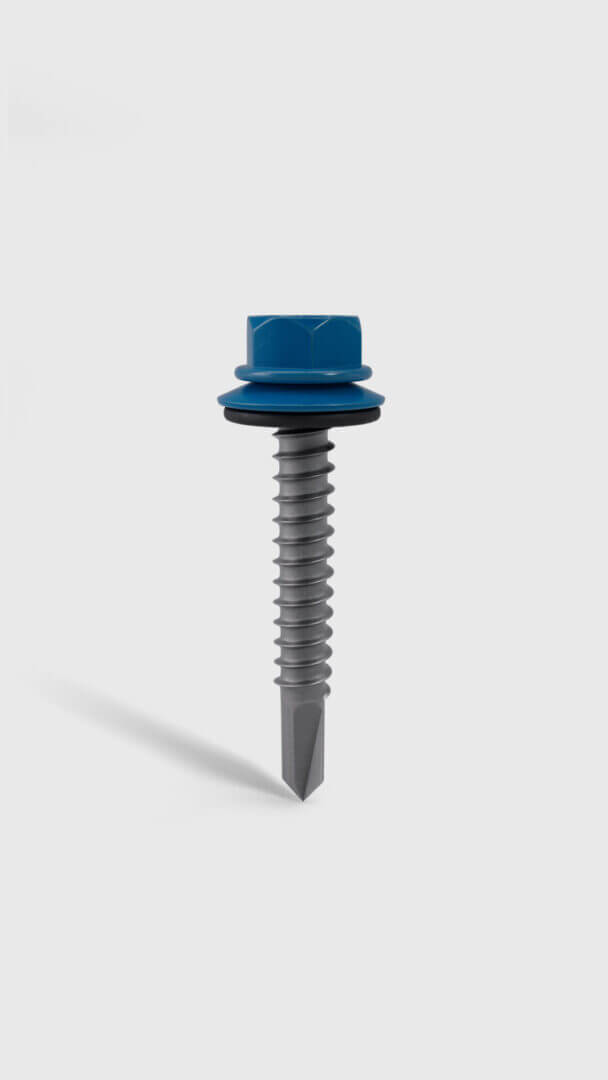

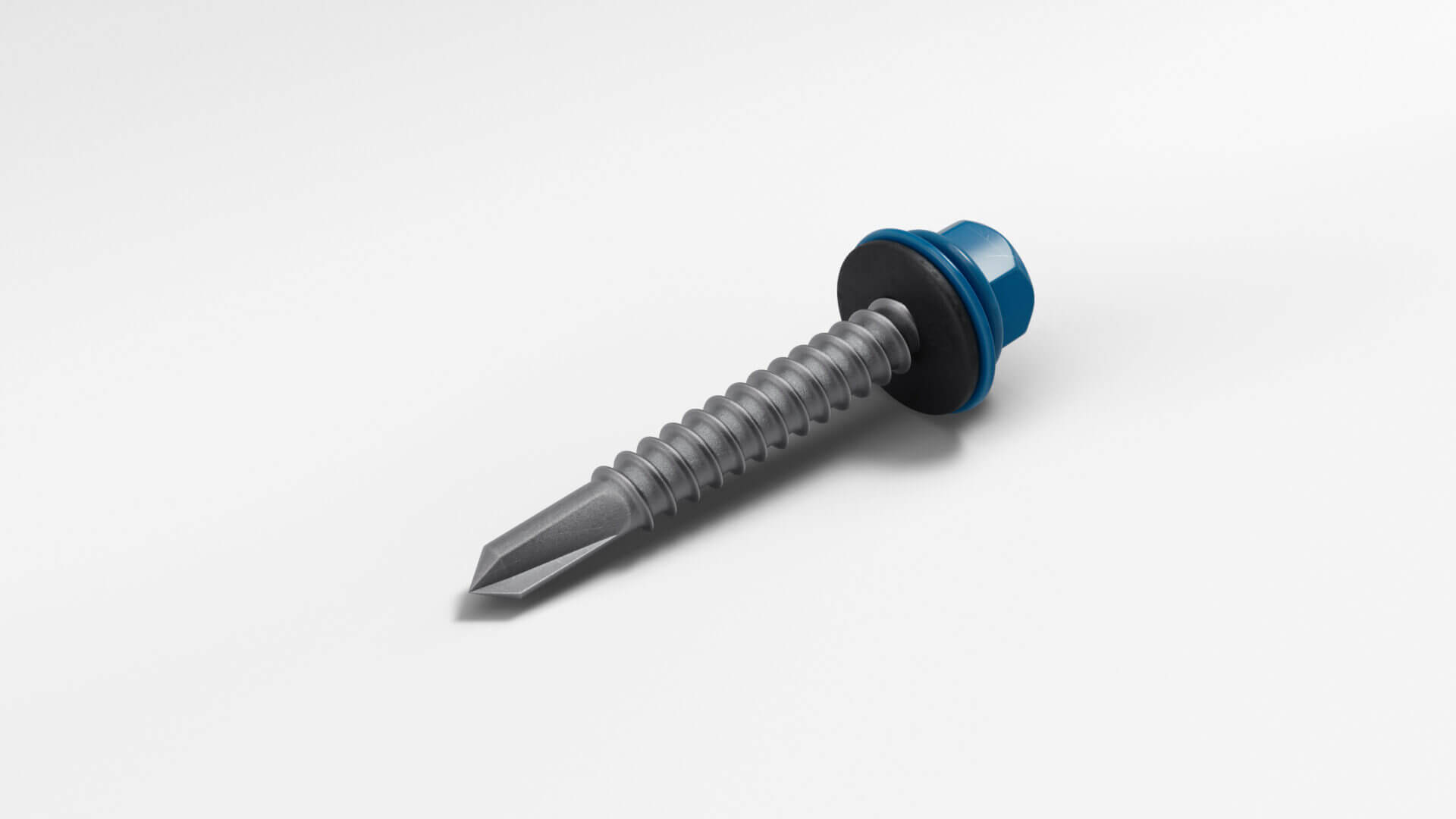

ULTRA-Z™

SELF-DRILLING FASTENER

Clear
SKU: N/A Categories: ,

Description

  • The REVERSE TAPER design features an extended flute that penetrates thicker materials while guiding chips away from the surface, eliminating clogging and reducing burn-out and waste.
  • Ultra-Z fasteners come in a full range of sizes and drives and are available with corrosion-inhibiting OxySeal IITM coating for extended life.
  • Ultra-Z drilling fasteners are manufactured using an innovative tapered compression point process (TCP) with tightened tolerance controls to provide an ultra-sharp cutting edge.

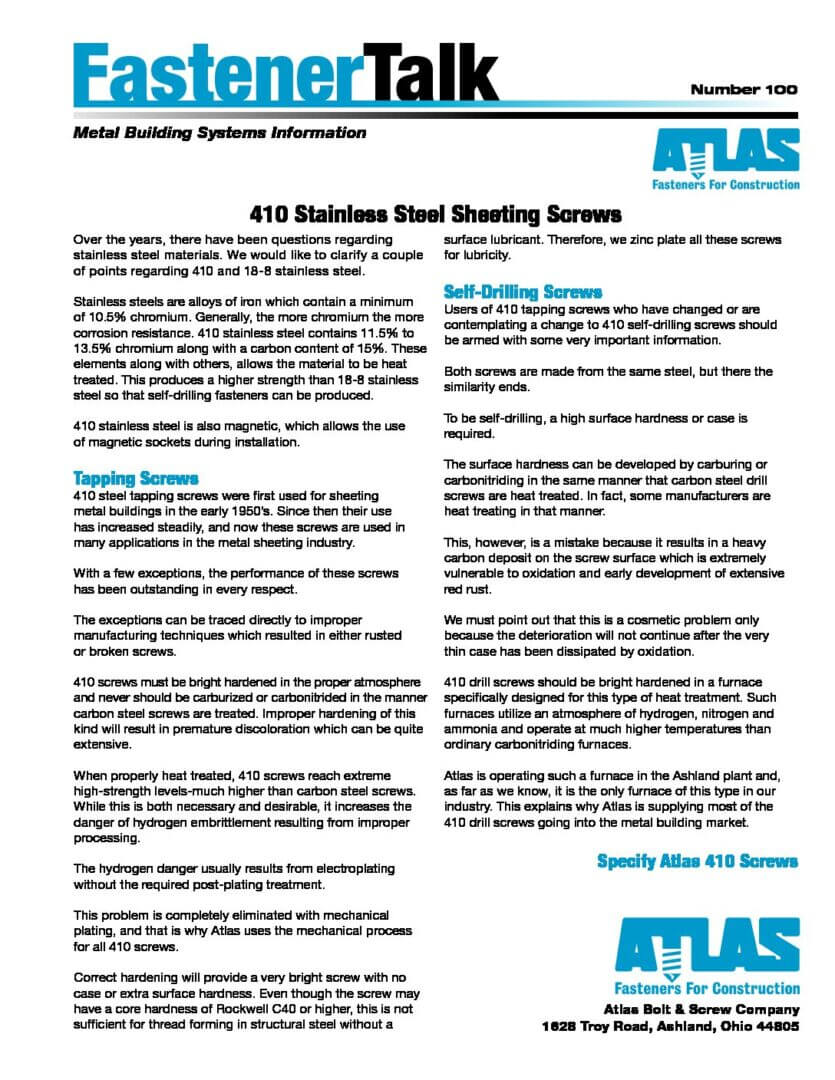

Click here for literature

Additional information

Washer:

Washer Included, No Washer

Available Diameters:

1/4 – 14, 1/4 – 20, 8 – 18, 10 – 16, 12 – 14, 12 – 24, 18 – 9

Available Lengths:

LAP, 1/2", 3/4", 5/8", 7/8", 1", 1 – 1/4", 1 – 1/2", 2", 2 – 1/2", 3", 4", 5", 6", 8"
